| Seal 07 EV Smart Driving Edition Configuration and Parameter Sheet |
| Model Information | 550 Smart Edition |
| Model | 550 Smart Edition |
| ■ Dimensions |
| Length × Width × Height (mm) | 4830 × 1925 × 1620 |
| Wheelbase (mm) | 2930 |
| Front/Rear Track (mm) | 1660 |
| Curb Weight (kg) | 2155 |
| Minimum Turning Radius (m) | 5.85 |
| Front Tire Specification | 235/50 R19 |
| Rear Tire Specification | 255/45 R19 |
| Vehicle Warranty | Non-commercial vehicle: lifetime warranty for the three-electric system (first owner), vehicle warranty period 6 years or 150,000 km |
| ■ Performance Parameters |
| Rear Drive Motor Type | Permanent Magnet Synchronous Motor |
| Rear Drive Motor Max Power (kW) | 170 |
| Rear Drive Motor Max Torque (N·m) | 380 |
| Front Drive Motor Type | — |
| Front Drive Motor Max Power (kW) | — |
| Front Drive Motor Max Torque (N·m) | — |
| System Combined Max Power (kW) | 170 |
| System Combined Max Torque (N·m) | 380 |
| Drive Type | Rear-Wheel Drive |
| iTAC Intelligent Torque Control System | — |
| 0-100 km/h Acceleration Time (s) | 7.3 |
| Max Speed (km/h) | 210 |
| CLTC Pure Electric Range (km) | 550 |
| Traction Battery Capacity (kWh) | 71.8 |
| Traction Battery Type | Lithium Iron Phosphate |
| AC Charging Max Power (kW) | 7 |
| DC Charging Max Power (kW) | 180 |
| DC Fast Charging Time (min) (10%-80%) | 25 |
| ■ Braking and Suspension |
| Front Brake Type | Ventilated Disc |
| Rear Brake Type | Ventilated Disc |
| Parking Brake Type | Electronic Parking Brake |
| Power Steering Type | Electric Power Steering |
| Front Suspension Type | Double Wishbone Independent Suspension |
| Rear Suspension Type | Five-Link Independent Suspension |
| FSD Variable Damper Suspension | ● |
| Yunlin-C Intelligent Damping Body Control System | — |
| ■ New Energy Configuration |
| Next-Generation e-Platform 3.0 Evo | ● |
| High-Safety Blade Battery | ● |
| CTB (Cell-to-Body) Technology | ● |
| High-Efficiency Drive Integrated Thermal Management System | ● |
| Full-Scenario Intelligent Pulse Self-Heating | ● |
| Intelligent Boost Fast Charging Technology | ● |
| Intelligent Final-Stage Fast Charging Technology | ● |
| Full-Region 800V High-Voltage Platform | — |
| 1200V SiC Silicon Carbide Electronic Control | ● |
| VTOL Mobile Power Station | ● |
| Scheduled Charging System | ● |
| ECO/SPORT/NORMAL/Snow Driving Modes | ● |
| ■ Safety Configuration |
| Full HD Panoramic View Camera | ● |
| Drive Recorder (DVR) | ● |
| Sentry Mode | ● |
| Remote View Mode | ● |
| Driver Front Airbag | ● |
| Passenger Front Airbag | ● |
| Front Center Airbag | ● |
| Front Side Airbags | ● |
| Rear Side Airbags | ● |
| Front/Rear Integrated Curtain Airbags | ● |
| Front Dual Pretensioning Seatbelts | ● |
| Rear Pretensioning Limit Load Seatbelts | ● |
| Full Vehicle Seatbelt Unbuckled Warning | ● |
| ESC Electronic Stability System | ● |
| Intelligent Power Brake System | ● |
| HBB Hydraulic Brake Boost System | ● |
| HBA Hydraulic Brake Assist System | ● |
| TCS Traction Control System | ● |
| CDP Parking Brake Deceleration Control System | ● |
| VDC Vehicle Dynamics Control System | ● |
| EBD Electronic Brake Distribution System | ● |
| HHC Hill Start Control System | ● |
| CST Comfort Braking Function | ● |
| TPMS Direct Tire Pressure Monitoring System (Digital Display) | ● |
| DFM Driver Fatigue Monitor | ● |
| DAM Driver Attention Monitor | ● |
| Electronic Child Safety Lock | ● |
| ISO-FIX Child Seat Anchor Device | ● |
| Central Door Lock | ● |
| Body Electronic Anti-Theft System | ● |
| Front Parking Radars | 6 |
| Rear Parking Radars | 6 |
| ■ God's Eye C - Smart Driving Assistance Tri-Vision Edition (DiPilot 100) |
| Highway Navigate on Autopilot (HNOA) | ● |
| Lane Change Assist (ILCA) | ● |
| Intelligent High Beam Control (IHBC) | ● |
| Intelligent Speed Limit Control (ISLC) | ● |
| Traffic Sign Recognition (SLIF) | ● |
| Lane Cruise Assist (ICC) | ● |
| Adaptive Cruise Control (ACC) | ● |
| Autonomous Valet Parking (AVP) | ● |
| Auto Parking Assist (APA) | ● |
| Remote Parking Assist (RPA) | ● |
| Parking Distance Control (PDC) | ● |
| Side Distance Warning (SDW) | ● |
| Maneuver Emergency Braking (MEB) | ● |
| Automatic Emergency Braking (AEB) | ● |
| Intelligent Speed Assist (ISA) | ● |
| Forward Collision Warning (FCW) | ● |
| Front Cross Traffic Alert (FCTA) | ● |
| Front Cross Traffic Brake (FCTB) | ● |
| Rear Collision Warning (RCW) | ● |
| Rear Cross Traffic Alert (RCTA) | ● |
| Rear Cross Traffic Brake (RCTB) | ● |
| Blind Spot Detection (BSD) | ● |
| Door Open Warning (DOW) | ● |
| Emergency Lane Keep Assist (ELKA) | ● |
| Curve Speed Warning (CSW) | ● |
| Lane Departure Assist (LDA) | ● |
| Surround View (SR) | ● |
| High-Precision Front Millimeter-Wave Radar | 1 |
| High-Precision Corner Millimeter-Wave Radars | 4 |
| Smart Driving Front-View Multi-Eye Camera | 1 |
| Smart Driving Surround-View Cameras | 4 |
| Smart Driving Surround-View Cameras | 4 |
| Smart Driving Rear-View Camera | 1 |
| ■ Smart Cockpit High Edition - DiLink 100 |
| DiLink 15.6-inch Ultra HD Floating Pad | ● |
| 5G Connectivity | ● |
| Smart Cloud Service In-Car Butler | ● |
| GPS Smart Navigation System | ● |
| Online Audio/Video Entertainment System | ● |
| In-Car Bluetooth System | ● |
| Phone Bluetooth Key | ● |
| Phone NFC Key | ● |
| Phone Cloud Key | ● |
| Keyless Entry & One-Button Start | ● |
| Smart Power On/Off | ● |
| Four-Zone Voice Interaction System | ● |
| In-Car Wi-Fi Hotspot | ● |
| E-Call Emergency Roadside Assistance | ● |
| I-Call Smart Customer Service Help | ● |
| OTA Remote Smart Upgrade | ● |
| Dynaudio Brand Speakers | ● |
| Number of Speakers | 12 |
| Immersive Multi-Color Ambient Light | — |
| Sub-Instrument Panel Translucent Ambient Light | — |
| Camping Mode/Baby Mode/Pet Mode, etc. | ● |
| ■ Exterior Configuration |
| Double-Layer Insulated Panoramic Glass Roof | ● |
| Illuminated Rear Logo | ● |
| AGS Active Grille Shutter | ● |
| Flush Hidden Door Handles | ● |
| Full Front Compartment Cover Trim | ● |
| Front Compartment Lid Gas Strut Opening | ● |
| Front Trunk (Frunk) | ● |
| Upper Side Window Black Trim Strip | ● |
| Charging Port Cover Electric Unlock | ● |
| Electric Tailgate | ● |
| Two-Tone Aluminum Alloy Wheels | ● |
| Front Exclusive Color Brake Calipers | — |
| Perforated Ventilated Brake Discs | — |
| Silent Tires | — |
| ■ Interior Configuration |
| Electric Sunshade | ● |
| 10.25-inch Full LCD Instrument Cluster | ● |
| In-Car Camera (IMS) | ● |
| Capacitive Steering Wheel | ● |
| Multi-Function Leatherette Steering Wheel | ● |
| Steering Wheel 4-Way Manual Adjustment | ● |
| Steering Wheel Heating | — |
| Front 50W Wireless Single Phone Charger | ● |
| Center Console Liftable Cup Holder | ● |
| Metal Kick Plate | ● |
| 12V Power Outlet | ● |
| Trunk 220V AC Outlet | — |
| 50-inch AR-HUD Visual Assistance | — |
| Front USB Ports (Type-A + Type-C) | ● |
| Rear USB Ports (Type-A + Type-C) | ● |
| Built-In Front ETC | ● |
| ■ Seat Configuration |
| Full Leatherette Seats | ● |
| Full Nappa Leather Seats | — |
| Driver Seat 8-Way Electric Adjustment | ● |
| Passenger Seat 6-Way Electric Adjustment | ● |
| Front Seat Heating | ● |
| Front Seat Ventilation | ● |
| Driver Seat Memory | — |
| Driver Seat 4-Way Electric Lumbar Support | ● |
| Driver Seat Electric Leg Rest | — |
| Passenger Seat 4-Way Electric Lumbar Support | — |
| Rear Seat Heating | — |
| Rear Seat Ventilation | — |
| Rear Seat Backrest Angle Manual Adjustment | ● |
| Rear Seats 40:60 Foldable | ● |
| ■ Lighting Configuration |
| LED Headlights | ● |
| Headlight Height Adjustable | ● |
| Automatic Headlights | ● |
| Headlights On/Off Welcome & Delay Function | ● |
| LED Daytime Running Lights | ● |
| Through-Type LED Rear Combination Lights | ● |
| Front Dynamic Turn Signal | — |
| Rear Dynamic Turn Signal | ● |
| LED High-Mount Brake Light | ● |
| LED Interior Light | ● |
| Trunk Light | ● |
| Dynamic Headlight Welcome Light | — |
| LED Charging Port Light | ● |
| ■ Glass / Mirror Equipment |
| Rain-Sensing Nozzle Windscreen Wiper | ● |
| Four Electric Windows | ● |
| Four Windows One-Touch Up/Down with Anti-Pinch | ● |
| Exterior Mirror Electric Adjustment | ● |
| Exterior Mirror Electric Folding | ● |
| Exterior Mirror Auto-Fold on Lock | ● |
| Exterior Mirror Heating/Defogging | ● |
| Exterior Mirror Auto-Tilt in Reverse | — |
| Exterior Mirror Position Memory | — |
| Interior Mirror Auto-Dimming | ● |
| Rear Window Electric Heating Defogger/Defroster | ● |
| Driver Side Illuminated Vanity Mirror | ● |
| Passenger Side Illuminated Vanity Mirror | ● |
| Front and Windscreen Double-Layer Acoustic Glass | ● |
| Front/Rear Heat-Insulating Glass | ● |
| Rear Door and Rear Window Privacy Glass | ● |
| ■ Climate Control Configuration |
| Heat Pump Air Conditioning | ● |
| Automatic Dual-Zone Climate Control | ● |
| Rear Foot Air Vents | ● |
| Rear Face Air Vents | ● |
| In-Car Fragrance System | — |
| PM2.5 High-Efficiency Filter | ● |
| PM2.5 Green Air Purification System | ● |
| Antibacterial Module | ● |
| Negative Ion Air Purifier | ● |
| Remote High-Temperature Sterilization Mode | ● |
| Notes: |
| "●" indicates this configuration is available, "—" indicates not available, "○" indicates optional. |
| To better meet customer needs, BYD continuously develops and improves its vehicles. Some configurations and specifications of vehicles sold on the market may differ from this configuration sheet. Please refer to the actual vehicle for details. Do not compare this sample's content with your purchased vehicle's equipment and parameters to claim compensation for differences. Maneuver Emergency Braking (MEB), Drive Recorder, Sentry Mode, Remote View Mode and other functions will be gradually enabled via OTA remote updates. Availability of some functions of God's Eye C - Smart Driving Assistance Tri-Vision Edition (DiPilot 100) and God's Eye B - Smart Driving Assistance Laser Edition (DiPilot 300) is subject to official notifications. |
| Regarding pure electric range: Actual on-road range may vary due to different ambient temperatures, road conditions, vehicle status, driving habits, etc. |
| The DiLink smart connectivity system will be continuously updated; specific functions may differ from this sheet. Some functions are implemented via third-party apps. Refer to the actual vehicle or the latest DiLink version for details. |
| The lifetime warranty for the three-electric system is subject to non-commercial vehicle use (first owner), with total driving mileage within each 12-month period from vehicle delivery not exceeding 30,000 km. See the "Three-Electric System Lifetime Warranty Certificate" or relevant provisions for details. |
| The Phone NFC Key requires a device with NFC function and manufacturer authorization for BYD to enable relevant device functions. For specific device models supporting this function, please consult local authorized dealers or refer to the actual device you are using. |
| All models are eligible for 2 years of cloud service and 2 years of in-car network data service (5GB/month). |
| None of the models come with a 7kW wall-mounted charging box. The first owner is entitled to free charging pile installation service rights within two years from the delivery date (service includes: 7kW wall-mounted charging box, up to 30 meters of cable and accessories, overcurrent and leakage protection devices and their installation accessories, two-year warranty for the charging pile and installation service). Consult an authorized BYD dealer for details. |
| The VTOL mobile power station function requires an external discharge device. For the 550 Smart Edition, this can be purchased from the BYD Ocean APP or an authorized dealer. For other models, the external discharge device is included as standard. |
| The 550 Smart Edition and 610 Smart Edition do not come with a karaoke microphone. If needed, it can be purchased from the BYD Ocean APP or an authorized dealer. |
| The smart driving assistance system cannot handle all traffic, weather, and road conditions and cannot fully replace the driver's control of the vehicle. The driver must always pay attention to current traffic conditions and be ready to take over control of the vehicle. Please read everything about this function in the user manual to understand its limitations. Drivers should be aware of these limitations before using the function. Use caution in complex or changing traffic conditions, snowy/icy/rainy/wet road conditions, waterlogged or muddy roads, poor visibility, winding mountain roads, highway entrances/exits, etc. |
| This configuration sheet is applicable from February 2025 onward. |
Seal 07 EV Smart Driving Edition 550 Smart Edition
Short Description:
This car offers a wealth of features including connected car technology, selectable driving modes, remote/Bluetooth/NFC/RFID keys, ambient lighting, and traction control (ASR/TCS, etc.) — making it exceptionally user-friendly for drivers.
- MODEL:550 Smart Edition
- ENGINE: Permanent Magnet Synchronous Motor
- Guide price: 18.98
Price: US $ 22421– 23421
Leave Your Message
相关文章

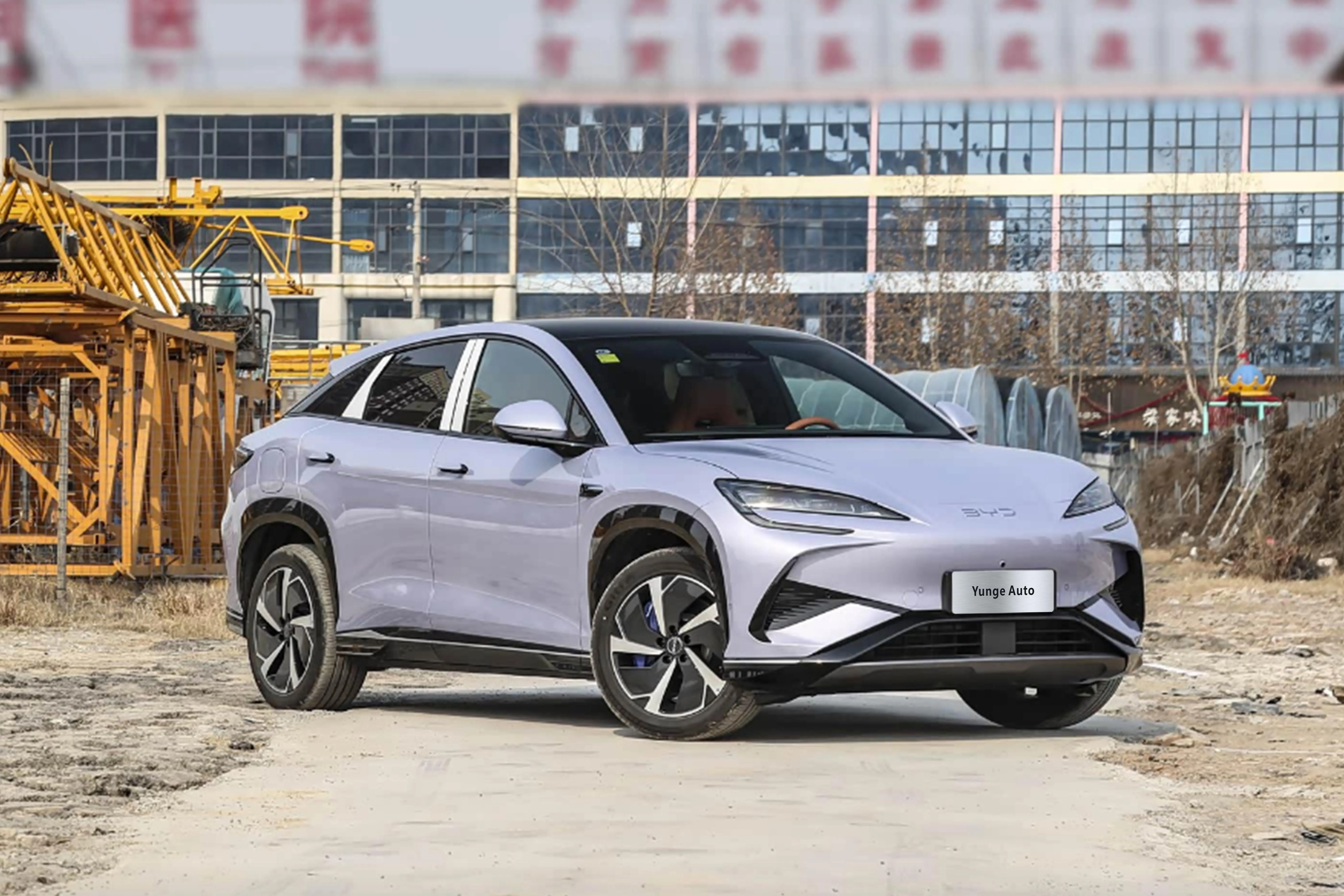

Seal 07 EV Smart Driving Edition 610 Smart Edition
